Eco-XPS 4ft x 8ft Sheet

Product Details

The Insulation needed to wrap up your concrete jobs. Reduce energy use to heat and cool your building. This solution is designed for a wide range of residential, commercial, industrial, and civil applications.

Applications

• Precast panels

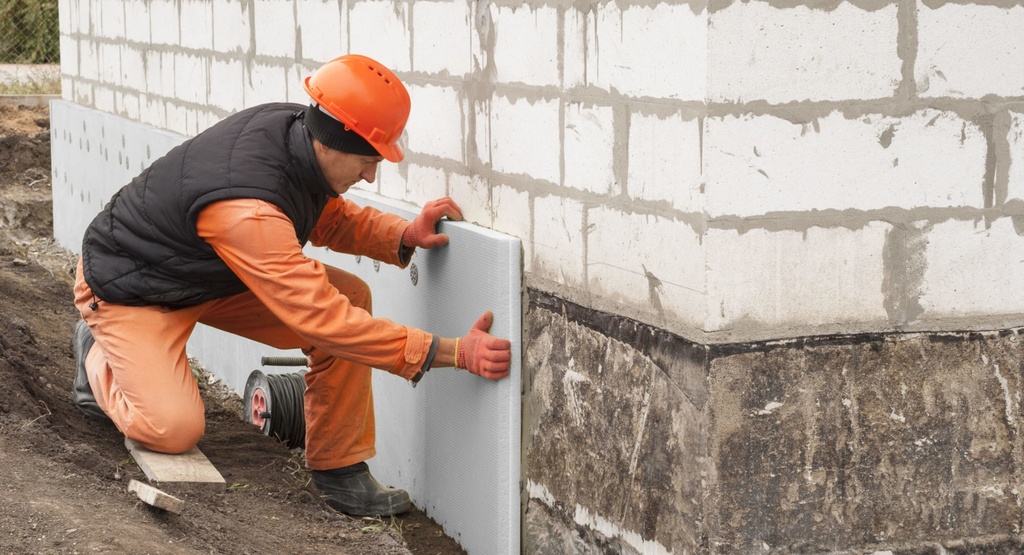

• Outside wall insulation
• Concrete floor insulation
• Concrete Basement insulation

Features

• R-VALUE: 1" (R5), 1.5" (R7.5), AND 2" (R10)
• Made using post consumer type 6 recycled polystyrene.

ratings on 2" (50mm) CAN/ULC S701.1:2017 (ASTM C578-19)

• Compressive Strength: 386 kPa (56 psi)
• Water Absorption (% by volume): 0.4 (0.2)
• Water Vapor Permeance: 45 ng/Pa-s-m2 (0.17 Perm2)
• Dimensional Stability: 1.4 (1.4-1.8)
• Flexural Strength: 565 kPa (82 psi)
• Density: - (2.38 lb/ft3)
• Thermal Resistance:  1.66 (m²·°C/W) or  5.2R per inch
• Flame Spread Rating: 140
